AC-2405 AIR Pure Silver | Nema - C15 | UHQ Kopie
Quality: Referenz€6,999.00
Product information "AC-2405 AIR Pure Silver | Nema - C15 | UHQ Kopie"
The Referenz AC-2405 AIR Pure Silver mains cable has been engineered specifically for connecting ultra-high-end audio systems. After all, at its core, any hi-fi system simply reproduces modulated mains electricity. The more consistently this power reaches the component, the better the performance. This is precisely where the power cable makes the difference.
The challenge: extreme current peaks
Connected equipment generates these peaks itself during the conversion from AC to DC. The consequences are significant voltage drops and potential differences between components. These, in turn, cause equalising currents to flow along the signal cables, superimposing themselves on the audio signal.
The solution: multicore construction, pure silver conductors and AIR technology
The multicore architecture and pure silver conductors minimise these voltage drops. Combined with AIR technology, the AC-2405 AIR Pure Silver operates with exceptional bandwidth. By largely eliminating conventional insulation materials—which would otherwise absorb part of the energy like a sponge—even steep current peaks at high levels and during dynamic passages are transmitted with minimal loss.
Numerous additional construction details counteract these undesirable effects. The result is an outstanding energy pipeline designed to meet the most demanding audiophile requirements.
Pure silver conductors
High-purity silver is recognised as the finest electrical conductor. Across the entire frequency spectrum, silver delivers greater detail. We attribute the charismatic sound of ultra-pure silver primarily to its high charge carrier drift velocity. Pure silver cables should not be confused with silver-plated cables. Silver-plated conductors are often associated with a metallic, aggressive tonal character—definitely not the case with genuine pure silver cables.
Tested safety
As much as we love great sound, safety takes absolute priority in this cable category. That is why in-akustik tests the electrical safety of all mains cables during development as part of type testing. After production, every single cable undergoes functional testing as well as insulation and high-voltage testing. The results are recorded and archived together with the serial number.
| Application: | High-end mains power connection |
|---|---|
| Cable diameter: | 25 mm |
| Certificate: | Yes |
| Conductor material: | High-purity silver |
| Conformity: | CE, REACH, RoHS |
| Contact enhancement: | Rhodium-coated |
| Cross-section: | 2 x 2,4 mm² ( 4 x 1,2 mm²) |
| Customized assembly: | On request |
| Design: | 4-fold multicore| Ground wire |
| Dielectric: | Air |
| Individual inspection: | Function, High voltage, Insulation, Protective conductor |
| Jacket: | PE network jacket |
| Length: | 1.5 m, 1 m, 2 m, 3 m |
| Load capacity: | 2300 W (230 V AC/10 A) |
| Phase marking: | Yes |
| Protection class: | 1 |
| Rated current: | 10 A |
| Rated voltage: | 250 V AC | 50/60 Hz |
| Shielding: | Dense copper braid, tin-plated (oxidation protection) |
| in-akustik product group: | Power supply |
| in-akustik category: | Power cords |
| Quality: | Referenz |
| Technology: | AIR Helix Point-to-Point, Multicore |
| Connector: | NEMA 5-15P > C15 (C13) |
| Connector highlight: | Referenz UHQ |
| Made in Germany: | Yes |
| Free trial listening: | Yes |
- AC-2405 AIR | Nema - C15 | UHQ
- Quality certificate
- User manual
- Company profile
If you have any questions about product safety, please contact:
in-akustik GmbH & Co. KG
Untermatten 12-14
79282 Ballrechten-Dottingen
Germany
Tel.: +49 (0) 7634 5610-0
E-Mail: service@in-akustik.de
Login
The Referenz AC-2405 AIR Pure Silver mains cable has been engineered specifically for connecting ultra-high-end audio systems. After all, at its core, any hi-fi system simply reproduces modulated mains electricity. The more consistently this power reaches the component, the better the performance. This is precisely where the power cable makes the difference.
The challenge: extreme current peaks
Connected equipment generates these peaks itself during the conversion from AC to DC. The consequences are significant voltage drops and potential differences between components. These, in turn, cause equalising currents to flow along the signal cables, superimposing themselves on the audio signal.
The solution: multicore construction, pure silver conductors and AIR technology
The multicore architecture and pure silver conductors minimise these voltage drops. Combined with AIR technology, the AC-2405 AIR Pure Silver operates with exceptional bandwidth. By largely eliminating conventional insulation materials—which would otherwise absorb part of the energy like a sponge—even steep current peaks at high levels and during dynamic passages are transmitted with minimal loss.
Numerous additional construction details counteract these undesirable effects. The result is an outstanding energy pipeline designed to meet the most demanding audiophile requirements.
Pure silver conductors
High-purity silver is recognised as the finest electrical conductor. Across the entire frequency spectrum, silver delivers greater detail. We attribute the charismatic sound of ultra-pure silver primarily to its high charge carrier drift velocity. Pure silver cables should not be confused with silver-plated cables. Silver-plated conductors are often associated with a metallic, aggressive tonal character—definitely not the case with genuine pure silver cables.
Tested safety
As much as we love great sound, safety takes absolute priority in this cable category. That is why in-akustik tests the electrical safety of all mains cables during development as part of type testing. After production, every single cable undergoes functional testing as well as insulation and high-voltage testing. The results are recorded and archived together with the serial number.

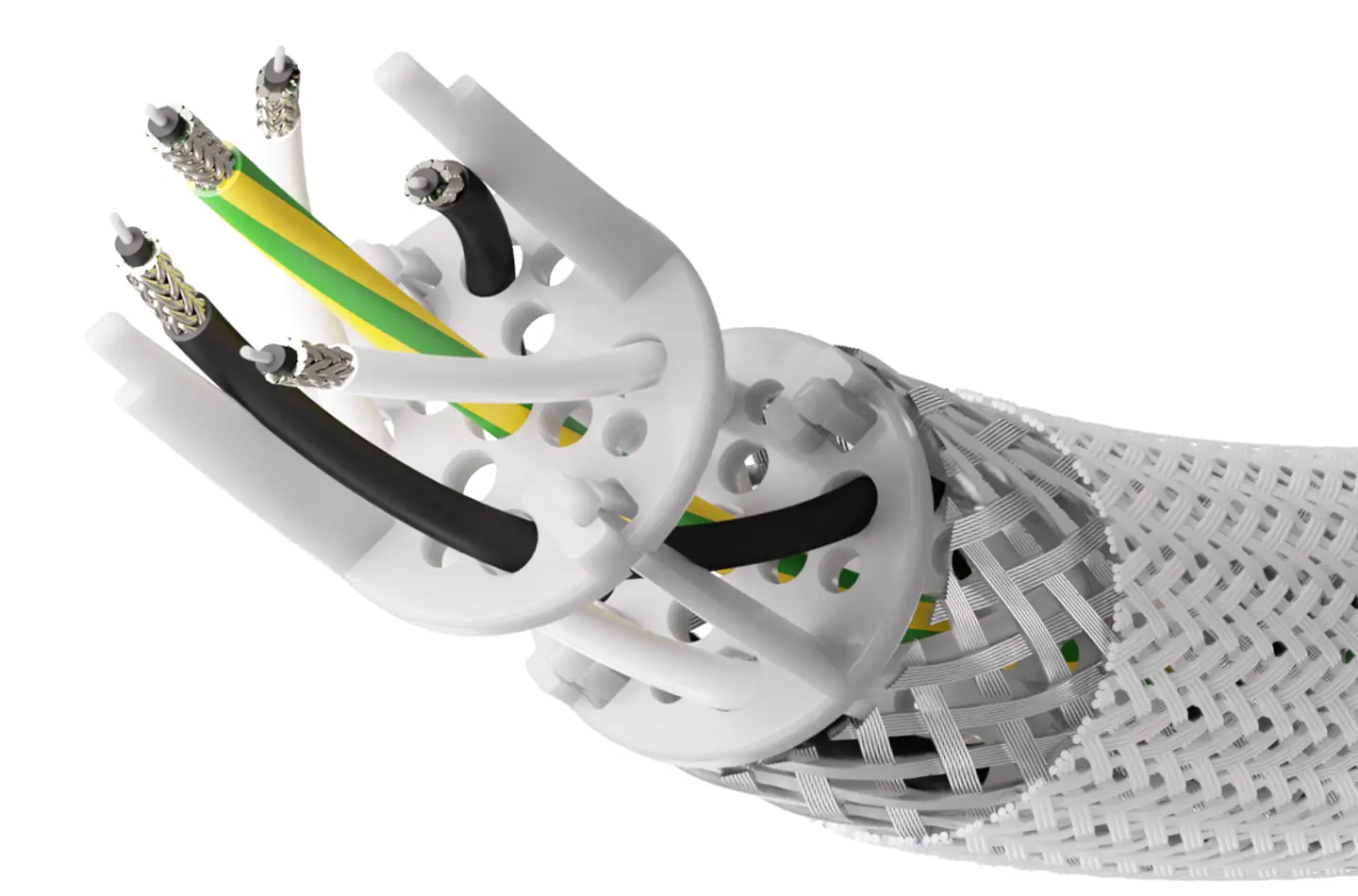

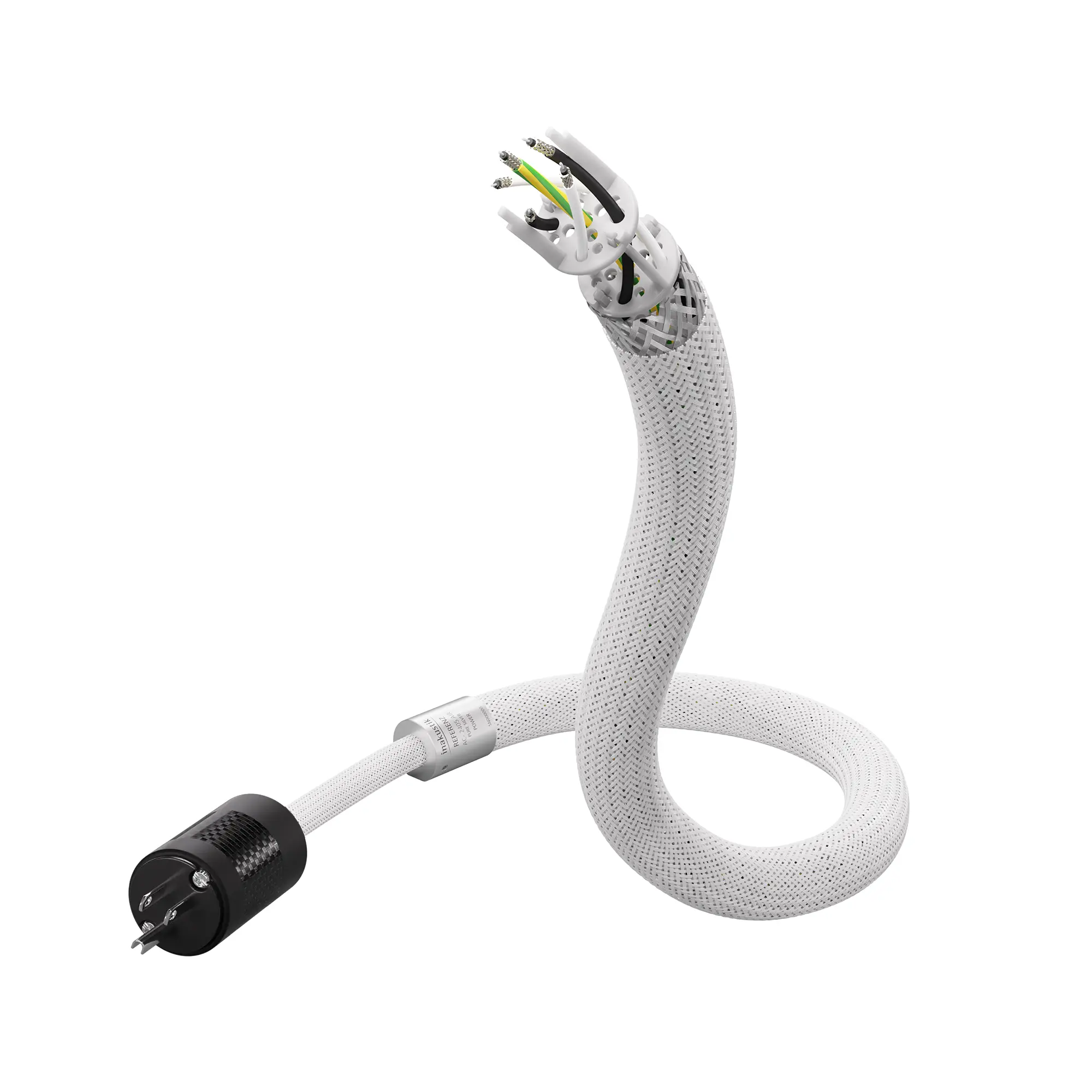

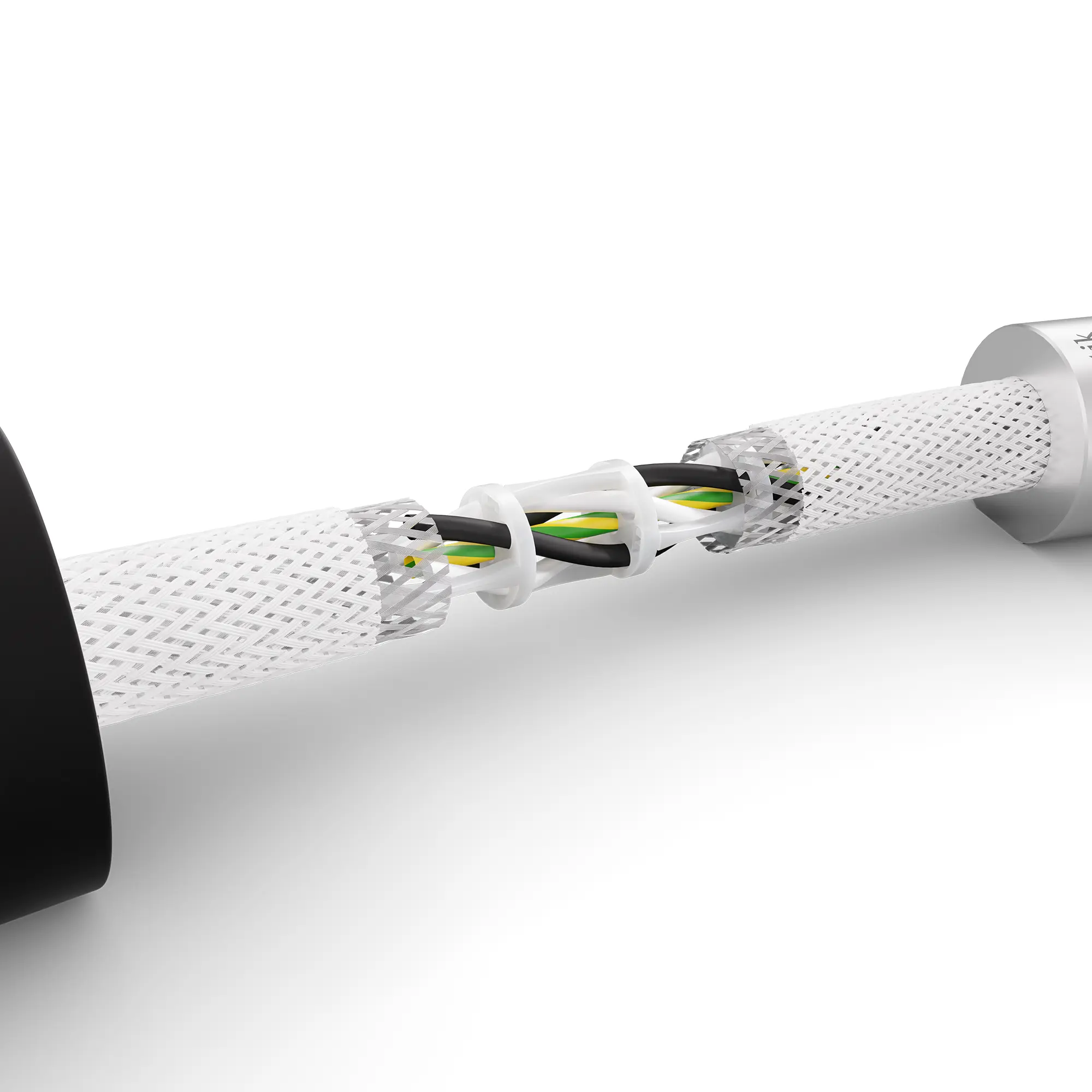

Dynamic music places an impulsive load on the output stages of an audiophile hi-fi chain. That's why we developed the Referenz AC-4005 AIR mains cable. Specially developed clips are used to keep the individual wires at a defined distance apart. The resulting "air dielectric" reduces power losses to a minimum and significantly improves the electrical parameters.
The multicore structure leads to an overlap, so compensating for the magnetic fields around the individual cores. The line inductance is greatly minimized, depending on the number of cores, and the skin effect caused by steep current flanks at high frequencies is clearly and audibly reduced. In addition, the usable conductor cross-section is effectively extended, and without the negative effects of thicker cables.
A dense shielding braid of tinned copper protects neighboring cables and components against external interference and also prevents oxidation. Each of our Referenz AIR mains cables is tested and inspected with the utmost care. The results are documented, and each cable is given an individual serial number.
Soundscapes are created by the dynamics in the music. To exploit the full potential of your high-end audio components, you need a reliable power pipeline that provides your components with the power peaks with as little delay and loss as possible. This is where the AC-1205 AIR mains connection cable comes into play.
Our innovative AIR technology has already caused a sensation in the high-end scene and now also forms the architectural basis for the AC-1205 AIR mains cable. Using specially developed clips, the individual conductors are held at fixed distances and insulated from each other by an "air dielectric". This reduces both capacitive and inductive interference and ensures a smooth flow of energy.
The multicore design of the AC-1205 AIR neutralizes the magnetic interference and magnetic fields generated by current peaks and minimizes the line inductance. In addition, the large number of individual wires reduces the skin effect that occurs at high frequencies. Splitting the current across many cores not only increases the usable conductor cross-section, but also increases the overall cross-section of the cable. The result is a reliable power supply, even in the most demanding passages, which allows your sound system to develop its full potential.
To minimize electromagnetic interference fields, the AIR cables are shielded with a dense braid of tinned copper. This not only protects your audio components, but also neighboring cables from unwanted interference caused by the high current peaks in the power cable.
The in-akustik High End AC-1205 AIR mains cable is an outstanding energy pipeline for perfect audiophile sounds. It eliminates unwanted effects and makes a not insignificant contribution to the most authentic music reproduction possible.
